Superior Avenue Pedestrian / Bicycle Bridge and Parking Lot

Print
Press Enter to show all options, press Tab go to next option

Project Description:

This project is located at the intersection of Superior Avenue and West Coast Highway and involves the construction of a new pedestrian/bicycle bridge across Superior Avenue and a larger parking lot with 130 parking spaces. The adjacent Sunset Ridge Park, which was completed in December 2014, is a 13.7-acre active park with a baseball field and two soccer fields. Unfortunately, due to California Coastal Development Permit constraints associated with the Sunset Ridge Park development, on-site parking was not included with the development of the park. Visitors to Sunset Ridge Park currently park at the existing parking lot on the southeast side of Superior Avenue. The existing parking lot only has 64 parking spaces and does not provide adequate parking for larger organized sporting events. The primary goals of this project are to increase parking and improve pedestrian and bicycle safety and access to Sunset Ridge Park.

Proposed improvements include the following:

  • New pedestrian/bicycle bridge approximately 210 feet long and 18 feet wide overcrossing Superior Avenue
  • New larger parking lot with 130 parking spaces
  • Extension of upper Sunset View Park (open space)
  • Earthwork, grading and retaining walls
  • Landscape and irrigation improvements
  • Amenities including a drop-off area, bicycle fix-it station, and a drinking water fountain

Project Status (Updated 2/9/2021):

The draft environmental document (Initial Study/Mitigated Negative Declaration – IS/MND) was circulated for public review from September 23 to October 23, 2019 and subsequently adopted by City Council on November 19, 2019. During the preparation of the construction documents, the City’s design consultant suggested a single-span concrete arch bridge in lieu of the 3-span concrete bridge as proposed in the original conceptual design. Staff believes that the concrete arch bridge is a favorable design since it does not required any concrete bridge supports on Superior Avenue. The modified bridge conceptual design was presented during the August 25, 2020 City Council meeting and approved by City Council.

Staff is currently coordinating with the California Coastal Commission for the Coastal Development Permit. In addition, an encroachment permit from Caltrans will also be required since West Coast Highway is under Caltrans’ jurisdiction.

Schedule

  • California Coastal Development Permit: May 2020 to May 2021
  • Caltrans Encroachment Permit: January 2021 to July 2021
  • Final Design: November 2019 to August 2021
  • Construction Bidding and Award: August 2021 to Sept 2021
  • Construction: October 2021 to December 2022

You are encouraged to visit this City project webpage (www.newportbeachca.gov/superiorbridge) regularly for the most up-to-date project information.

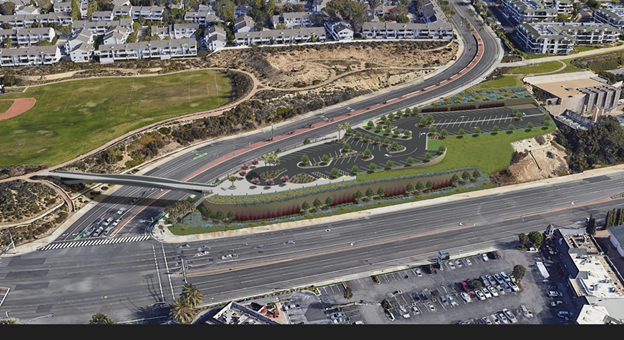

Rendering: View from Superior

 Rendering IMG_3525_From Superior

 Rendering: View from Coast Hwy

Rendering IMG_3420_From WCH

Project Contacts:

Public Works Department
949-644-3311

Project Manager
Andy Tran, P.E.
949-644-3315
